Webserver & Reverse Proxy Architecture¶

Overview¶

MoE Sovereign uses a two-tier reverse proxy model: an external Nginx running natively on the host handles public TLS termination and port routing, while an internal Caddy container provides TLS for the documentation domain only.

Tier 1 — Host-Level Nginx (External)¶

The host Nginx is not a Docker container. It runs directly on the OS of the VM/server that hosts the Docker stack, and it is responsible for:

TLS termination via Let's Encrypt (certbot / acme) — certificates are managed at the OS level, not inside any container
Reverse proxying of external HTTPS requests to the corresponding Docker service port on localhost
Public URL mapping — each configured public URL (e.g. api.example.com) points to a specific host port via proxy_pass

graph TD
    INTERNET["🌐 Internet"]

    subgraph HOST["Physical Host / VM (OS-Level)"]
        NGINX["Nginx\n(native, not Docker)\nTLS via Let's Encrypt\nPort 80 → 443 redirect"]
        CERTS["/etc/letsencrypt/\nLet's Encrypt certs"]
        NGINX --- CERTS
    end

    subgraph DOCKER["Docker Stack (same host)"]
        ORCH["langgraph-orchestrator\nlocalhost:8002"]
        ADMIN["moe-admin\nlocalhost:8088"]
        GRAF["moe-grafana\nlocalhost:3001"]
        PROM["moe-prometheus\nlocalhost:9090"]
        DOZZLE["moe-dozzle\nlocalhost:9999"]
        CADDY["moe-caddy :80/:443\n→ moe-docs :8098\n→ moe-dozzle :9999"]
    end

    INTERNET -->|HTTPS| NGINX
    NGINX -->|proxy_pass localhost:8002| ORCH
    NGINX -->|proxy_pass localhost:8088| ADMIN
    NGINX -->|proxy_pass localhost:3001| GRAF
    NGINX -->|proxy_pass localhost:9090| PROM
    NGINX -->|proxy_pass localhost:9999| DOZZLE

Typical Nginx Virtual Host Mapping¶

External HTTPS URL	`proxy_pass` target	Docker service
`api.example.com`	`http://localhost:8002`	`langgraph-orchestrator`
`admin.example.com`	`http://localhost:8088`	`moe-admin`
`grafana.example.com`	`http://localhost:3001`	`moe-grafana`
`metrics.example.com`	`http://localhost:9090`	`moe-prometheus`
`logs.example.com`	`http://localhost:9999`	`moe-dozzle`

The exact URLs are configured in the Admin UI under Configuration → Public URLs. The LOG_URL and PROMETHEUS_URL_PUBLIC fields store the external URLs for the log viewer and Prometheus — these are informational links used in the Admin UI dashboard.

Let's Encrypt Configuration¶

TLS certificates are managed by certbot on the host:

# Obtain certificate (example)
sudo certbot --nginx -d api.example.com -d admin.example.com

# Auto-renewal via systemd timer or cron
sudo certbot renew --dry-run

Certificates reside in /etc/letsencrypt/live/<domain>/ and are referenced from the Nginx virtual host configuration. Docker containers do not have access to these certificates.

Tier 2 — Internal Caddy Container¶

The moe-caddy container is a Docker-internal reverse proxy that exclusively manages the MkDocs documentation domain. It handles its own TLS via the Caddy automatic HTTPS mechanism (separate from host-level Let's Encrypt).

graph LR
    NGINX_HOST["Nginx\n(host, optional for docs domain)"]
    CADDY["moe-caddy\nPort 80 + 443"]
    DOCS["moe-docs\nMkDocs :8098"]
    DOZZLE2["moe-dozzle\n:9999"]

    NGINX_HOST -->|proxy_pass| CADDY
    CADDY -->|reverse_proxy| DOCS
    CADDY -->|reverse_proxy| DOZZLE2

The moe-caddy service depends on moe-docs and moe-dozzle. Its Caddyfile configures both upstreams within the same Docker network.

Docker Network Architecture¶

All containers share the default (bridge) network created by Docker Compose. An additional authentik_network is joined by moe-admin for server-side OIDC token exchange with Authentik.

graph TD
    subgraph dockerNet["Docker bridge network: moe-sovereign_default"]
        ORCH2["langgraph-orchestrator"]
        ADMIN2["moe-admin"]
        MCP2["mcp-precision"]
        CACHE2["terra_cache (Valkey)"]
        PG2["terra_checkpoints (Postgres)"]
        CHROMA2["chromadb-vector"]
        NEO2["neo4j-knowledge"]
        KAFKA2["moe-kafka"]
        PROM2["moe-prometheus"]
        GRAF2["moe-grafana"]
        NODE2["node-exporter"]
        CADV2["cadvisor"]
        PROXY2["docker-socket-proxy"]
        DOCS2["moe-docs"]
        DOZZLE3["moe-dozzle"]
        CADDY2["moe-caddy"]
        SYNC2["moe-docs-sync"]
    end

    subgraph authentik_net["External network: authentik_network"]
        AUTK["Authentik\n(external service)"]
        ADMIN2 -.->|OIDC token exchange| AUTK
    end

Port Reference — All Services¶

Service	Host Port	Container Port	Protocol	Accessible Externally
`langgraph-orchestrator`	8002	8000	HTTP	Via Nginx (optional)
`mcp-precision`	8003	8003	HTTP	No (internal only)
`neo4j-knowledge`	7474, 7687	7474, 7687	HTTP / Bolt	No (internal only)
`terra_cache`	6379	6379	TCP	No (internal only)
`terra_checkpoints`	—	5432	TCP	No (internal only)
`chromadb-vector`	8001	8000	HTTP	No (internal only)
`moe-kafka`	9092	9092	TCP	No (internal only)
`moe-admin`	8088	8088	HTTP	Via Nginx (required)
`moe-prometheus`	9090	9090	HTTP	Via Nginx (optional)
`moe-grafana`	3001	3000	HTTP	Via Nginx (optional)
`node-exporter`	9100	9100	HTTP	No (internal scrape)
`cadvisor`	9338	8080	HTTP	No (internal scrape)
`docker-socket-proxy`	2375	2375	HTTP	No (internal only)
`moe-docs`	8098	8000	HTTP	Via moe-caddy / Nginx
`moe-dozzle`	9999	8080	HTTP	Via moe-caddy / Nginx
`moe-caddy`	80, 443	80, 443	HTTP/S	Via Nginx (optional)

Dozzle — Log Viewer¶

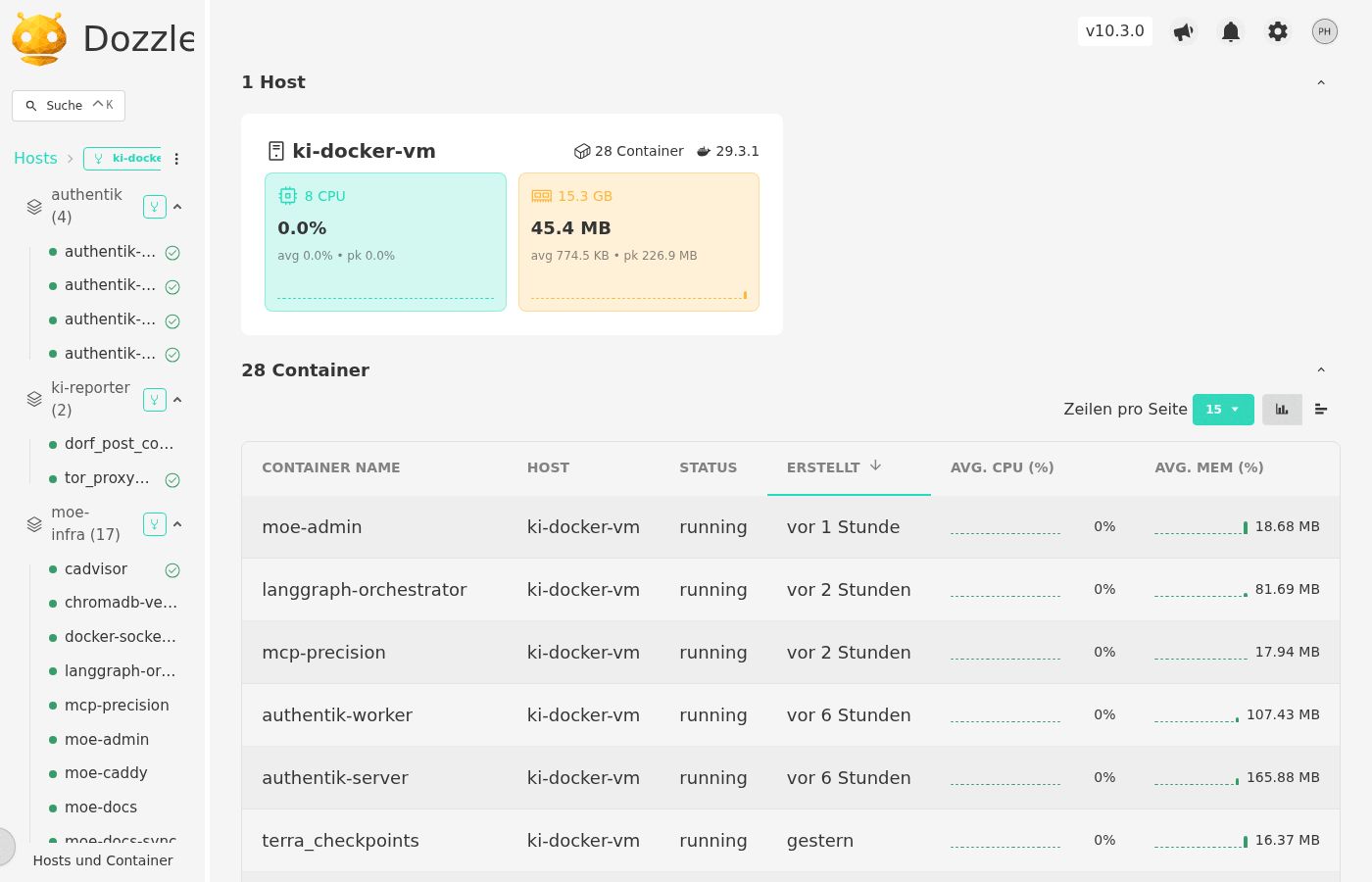

Dozzle Log Viewer

Dozzle provides a real-time log stream for all running Docker containers. Access is restricted via bcrypt-authenticated user accounts generated by moe-dozzle-init. The external URL is configured in the Admin UI as LOG_URL.

Security Considerations¶

Docker socket access is never granted directly to moe-admin. Instead, a docker-socket-proxy (tecnavia/docker-socket-proxy) is placed in front of the socket with read-only access configured via CONTAINERS=1, SERVICES=1, TASKS=1, NETWORKS=1.
Prometheus and Grafana are accessible only via Nginx (with HTTP auth or SSO) — they should not be exposed on public interfaces without authentication.
terra_checkpoints (Postgres) has no host port binding — it is only reachable within the Docker network.
Authentik SSO integration uses server-side token exchange via the authentik_network Docker network — no client secrets are transmitted through the browser.

Admin UI — External URL Configuration¶

The Admin UI (Configuration → Public URLs) stores four categories of public URL:

Field	Env var	Purpose
User Portal URL	`APP_BASE_URL`	Base URL shown to end users
Admin Backend	`PUBLIC_ADMIN_URL`	External admin URL (Authentik redirect URI sync)
Public API	`PUBLIC_API_URL`	OpenAI-compatible API endpoint for clients
Log Viewer URL	`LOG_URL`	External Dozzle URL (informational link in Admin UI)
Prometheus URL	`PROMETHEUS_URL_PUBLIC`	External Prometheus URL (informational link)

Changes to APP_BASE_URL, PUBLIC_ADMIN_URL, and PUBLIC_API_URL are automatically synced to the Authentik OAuth2 provider's redirect_uris list after saving.
