Monitoring & Processes

The admin backend provides two monitoring layers: System Monitoring for aggregated Prometheus metrics and Live Monitoring for real-time process tracking with kill functionality.

Observability architecture at a glance

flowchart LR
    subgraph App["Orchestrator (main.py)"]
        M[prometheus_client<br/>/metrics endpoint]
        A[Valkey key<br/>moe:active:*]
        H[Valkey sorted-set<br/>moe:admin:completed]
    end
    subgraph Admin["Admin UI"]
        SM["/monitoring<br/>(Chart.js + PromQL)"]
        LM["/live-monitoring<br/>(polling 5 s)"]
    end
    subgraph Ext["External"]
        P[(Prometheus)]
        G[(Grafana)]
    end

    M -- scrape 15 s --> P
    P -- PromQL --> SM
    P -- datasource --> G
    A -- Valkey SCAN --> LM
    H -- ZRANGE --> LM
    LM -- POST kill-request --> A

    classDef app fill:#eef2ff,stroke:#6366f1;
    classDef ui  fill:#f0fdf4,stroke:#16a34a;
    classDef ext fill:#fef3c7,stroke:#d97706;
    class M,A,H app;
    class SM,LM ui;
    class P,G ext;

• System Monitoring is pull-based: it queries Prometheus on-demand when the operator opens the page.
• Live Monitoring is poll-based: the browser hits Valkey-backed REST endpoints every 5 s.
• Both layers share the same prometheus_client data surface but serve different latency needs.

Screenshots

System Monitoring

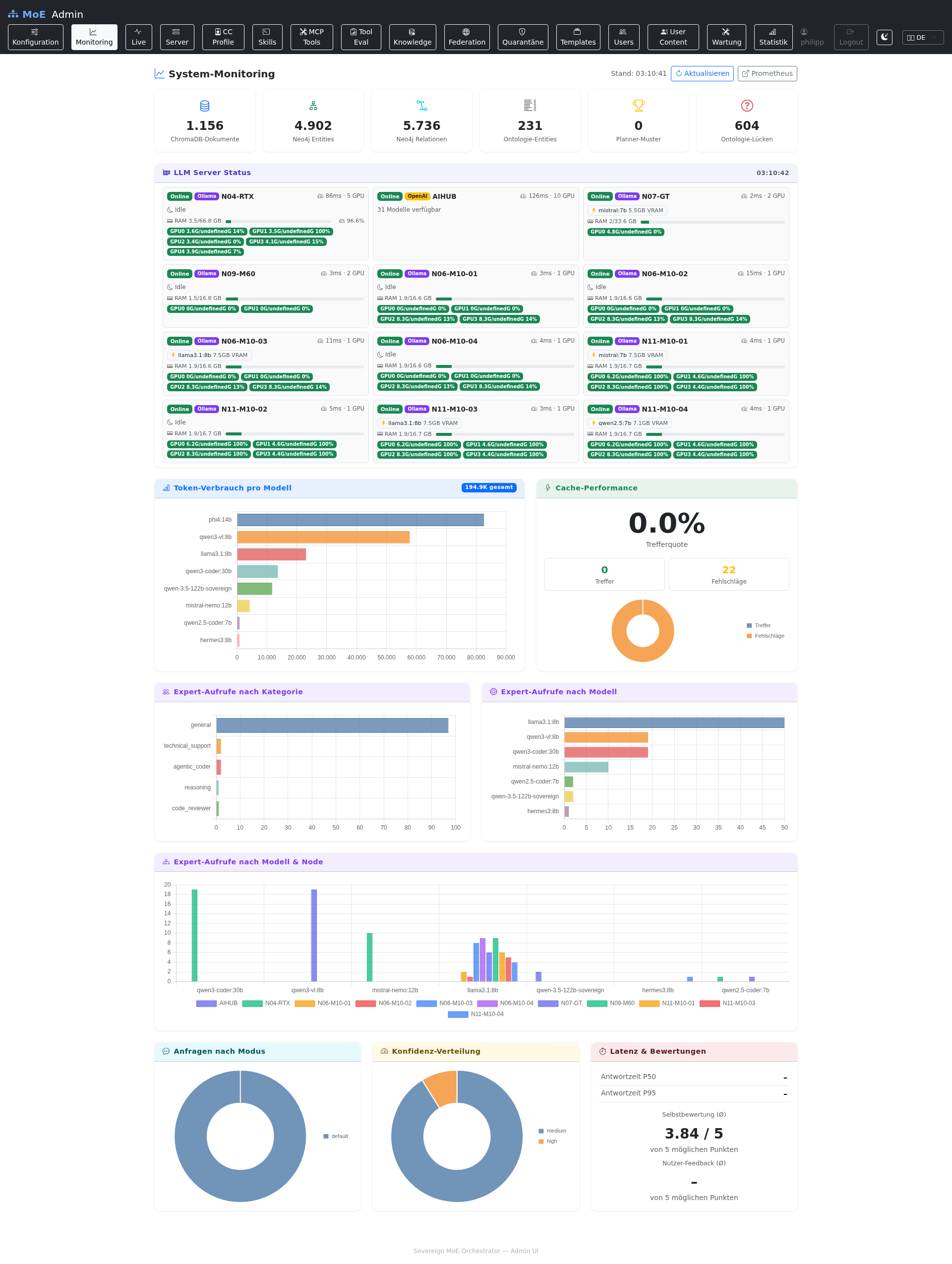

Fully populated dashboard after production traffic — all six system gauges, LLM server status row, Chart.js widgets for token usage, cache performance, expert-calls-by-category/model/mode, requests-by-mode donut, confidence distribution, and latency & ratings.

Privacy

Internal node identifiers in this screenshot (e.g. NODE-XX) are anonymised placeholders. In a live deployment you will see your actual inference-server names (as configured under Configuration → Servers).

Live Monitoring — Active Processes & History

Real-time view with a running long task (top panel, 6.2 min streaming request against an enterprise template) plus the recent history of completed requests.

Redacted columns

For the docs, the User, Client IP, API-Key, Request ID, and Template columns are blurred. In your own install all columns are visible to admins — the mask is purely a documentation-time privacy filter.

Live Monitoring — LLM Instances tab

Per-server card view: loaded models with VRAM / parameters / quantisation / family / TTL, Ollama metrics (in-progress, queued, loaded, total requests, avg latency, I/O volumes), and an expandable list of all installed models per node.

Idle detection

Cards without any loaded models are labelled "Kein Modell geladen (idle)" — useful for spotting cold nodes during load-balancing reviews.

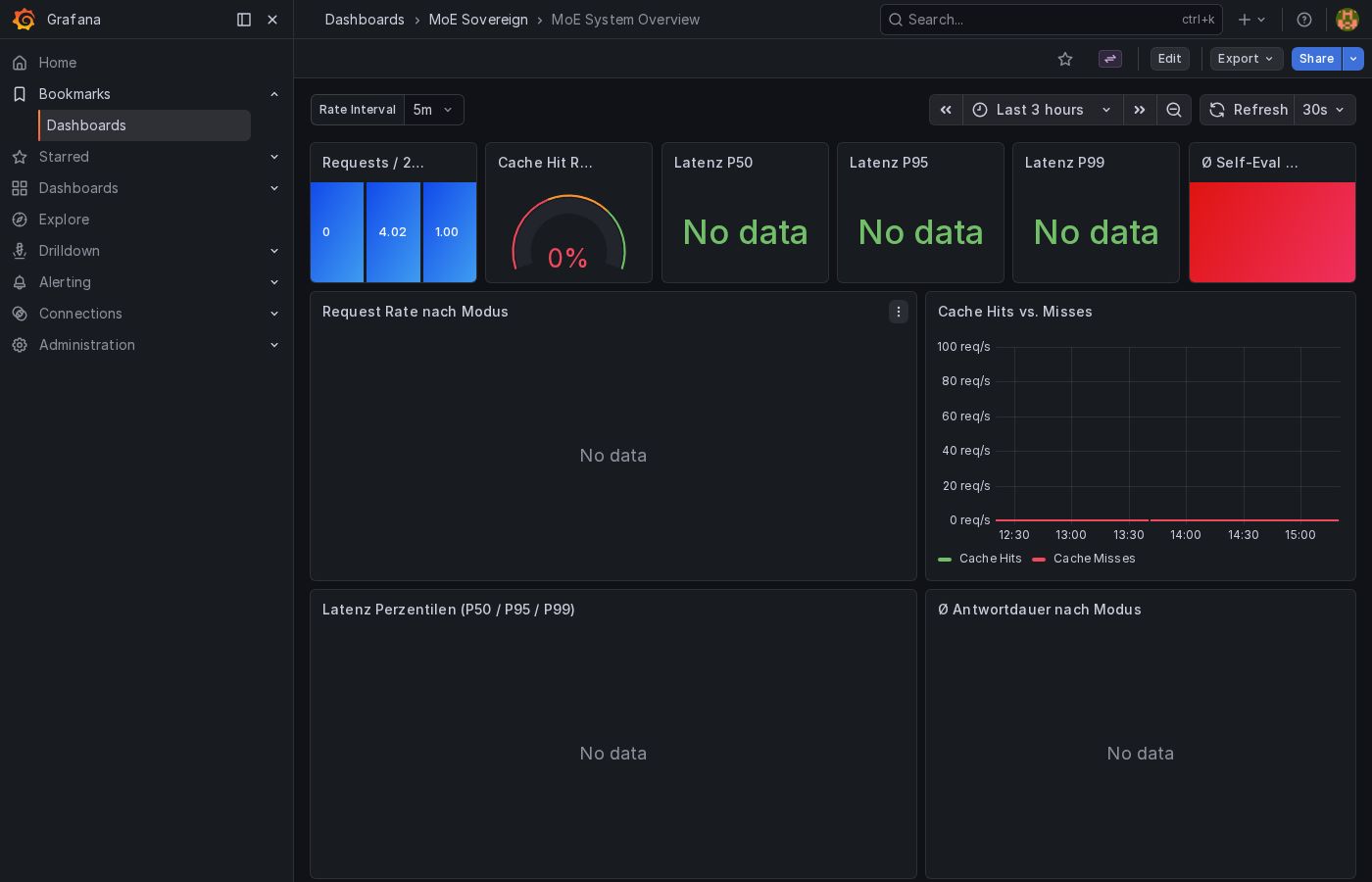

Grafana — MoE System Overview

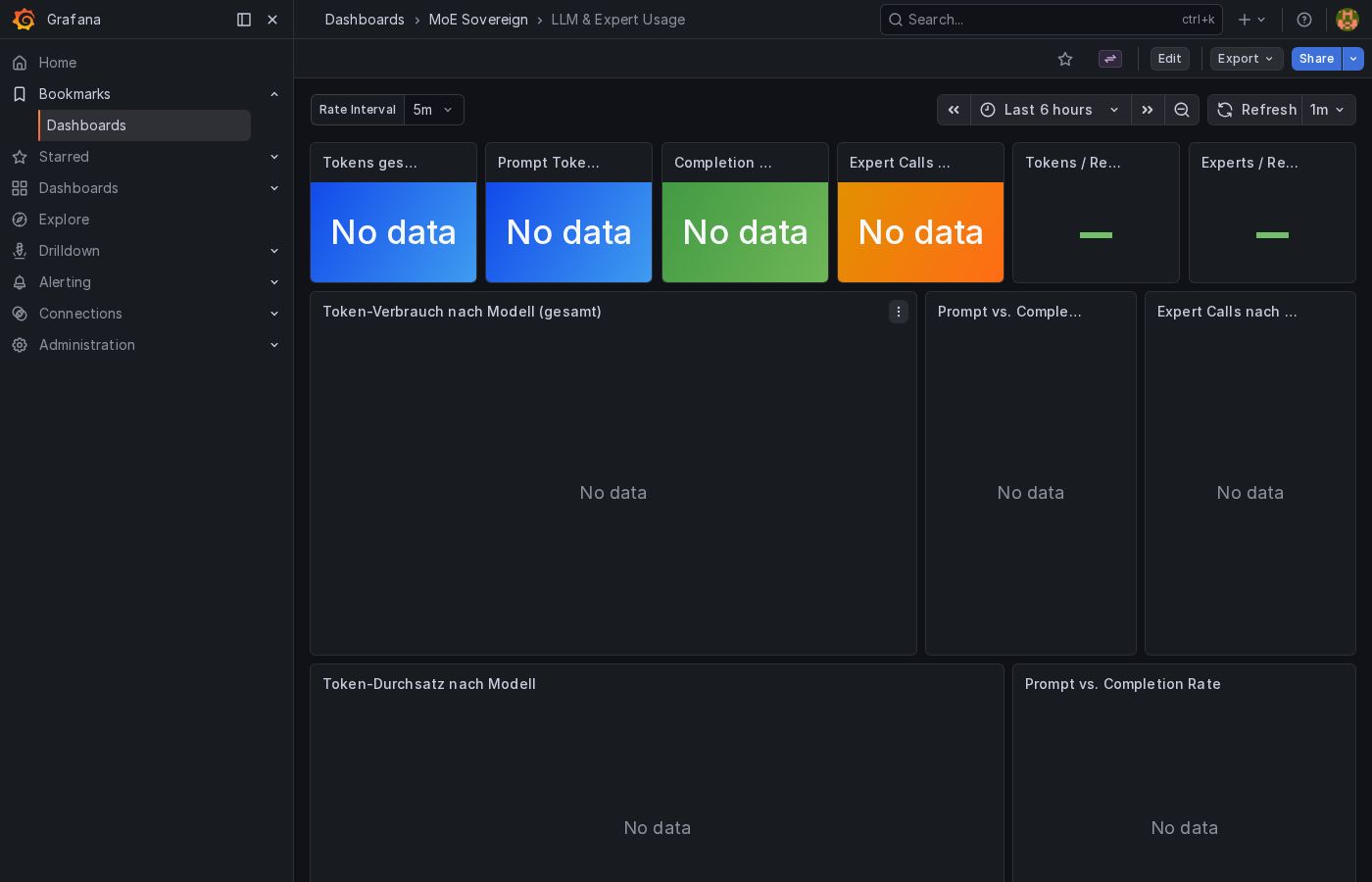

Grafana — LLM & Expert Usage

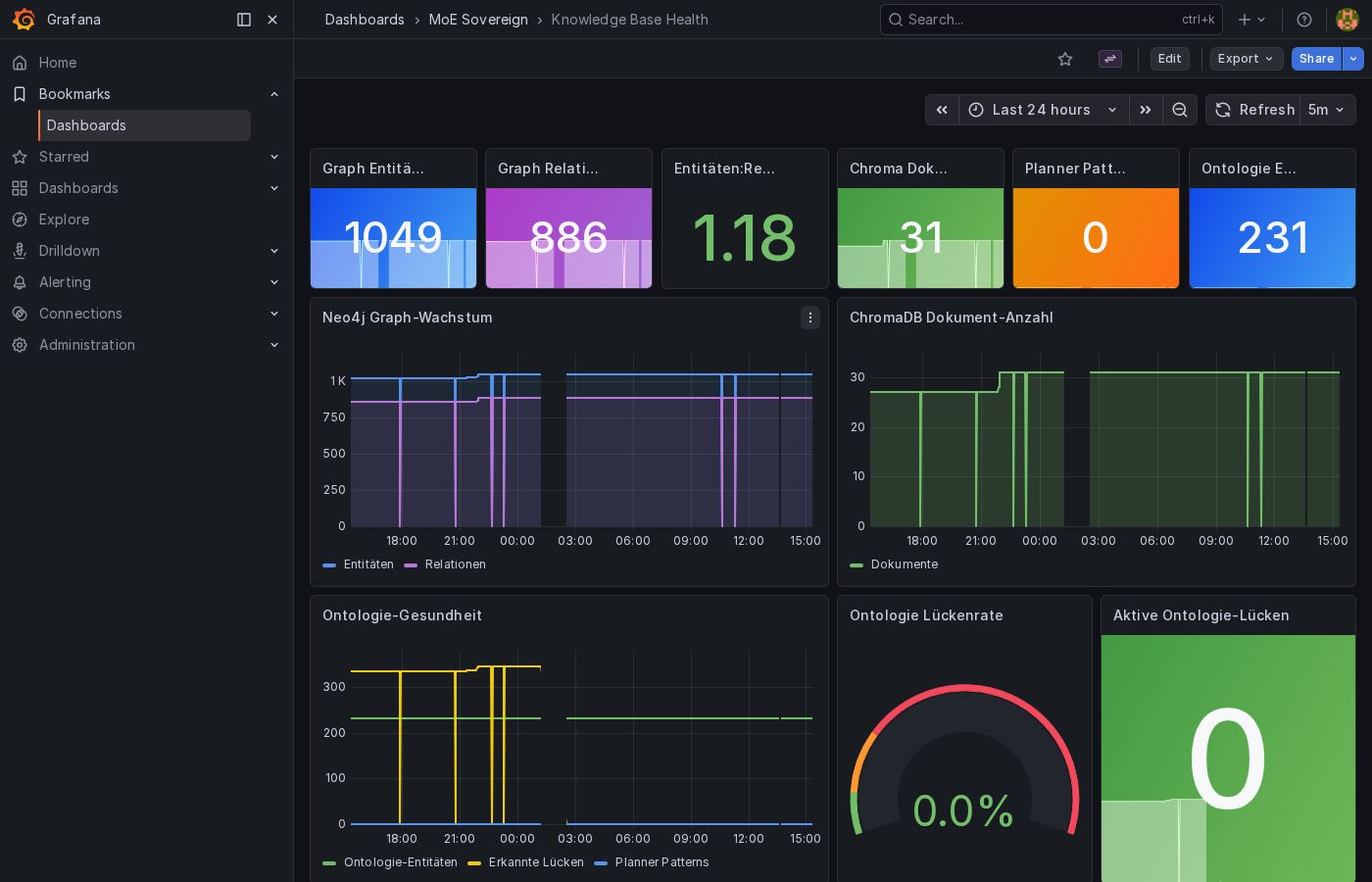

Grafana — Knowledge Base Health

Grafana — GPU & Inference Nodes

The moe-gpu-nodes dashboard (grafana/dashboards/moe-gpu-nodes.json) provides per-node, per-GPU panels for VRAM usage, GPU utilization, RAM, and disk. Data is scraped from node-exporter instances on each inference host via the inference-nodes Prometheus job.

Key panels:

Panel	Metric
VRAM Usage	node_gpu_memory_used_bytes / node_gpu_memory_total_bytes
GPU Utilization	node_gpu_utilization_percent
RAM Usage	node_memory_MemTotal_bytes - node_memory_MemAvailable_bytes
Disk Usage	node_filesystem_size_bytes - node_filesystem_avail_bytes

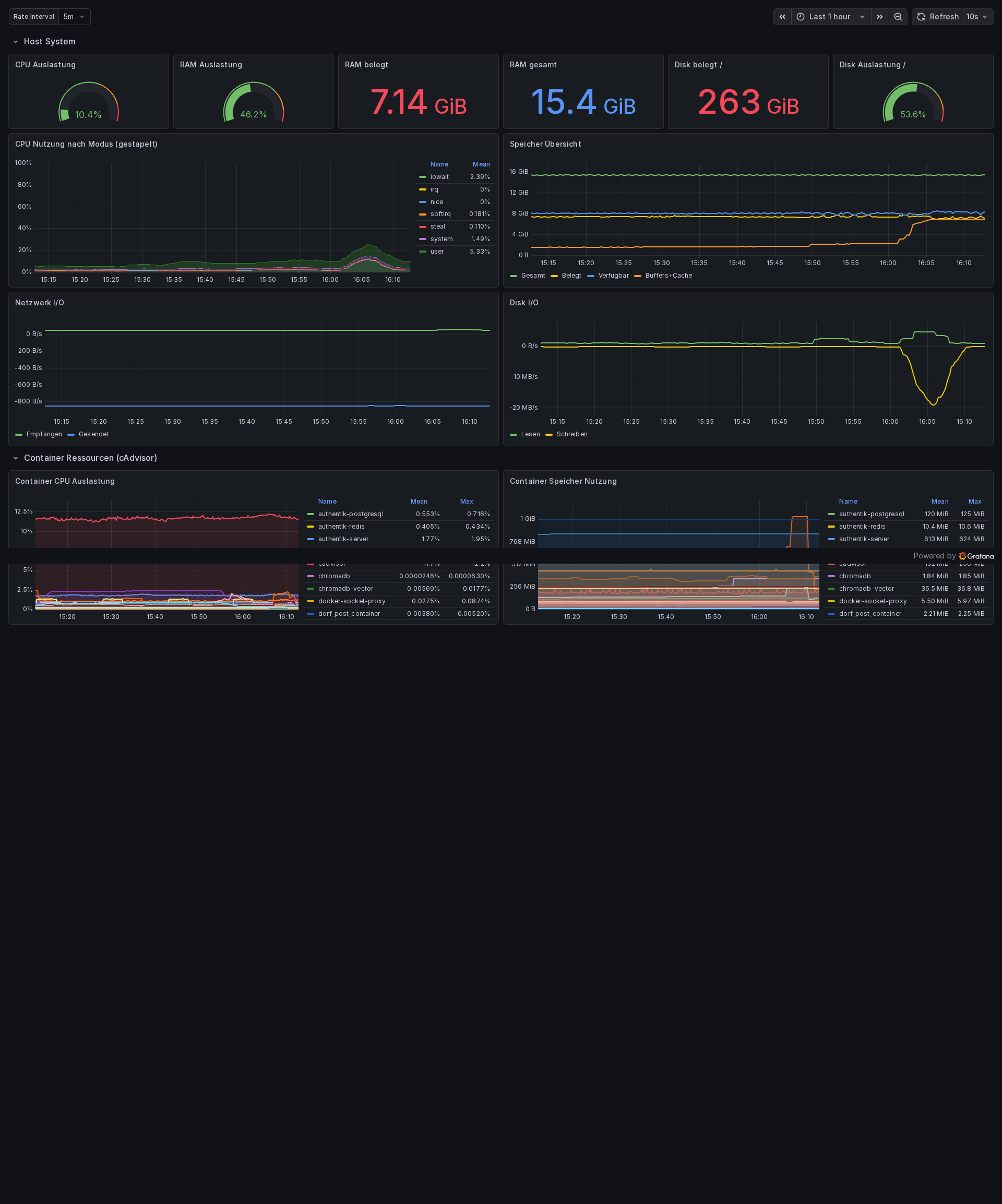

Grafana — Infrastructure & Resources

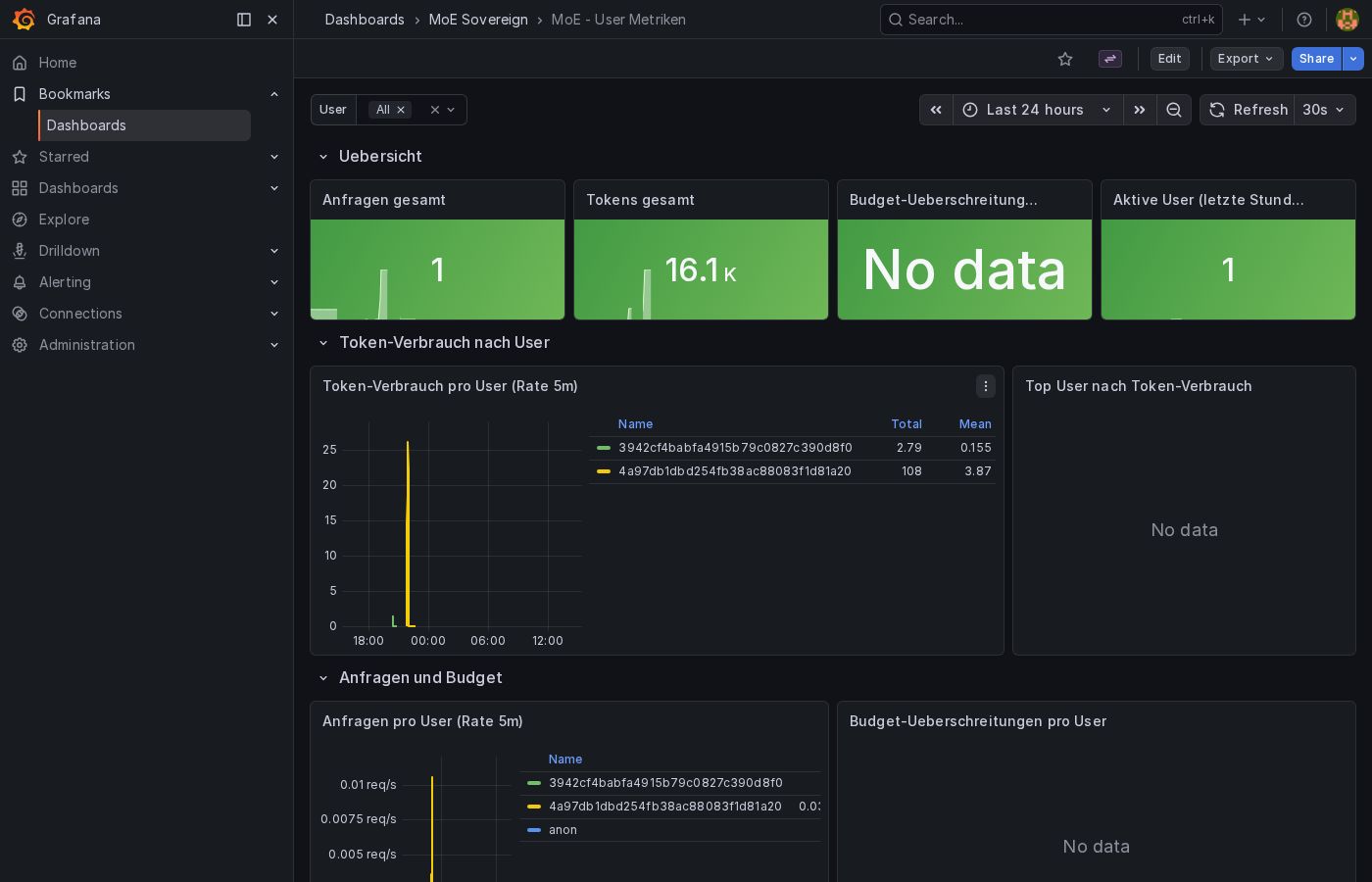

Grafana — User Metrics

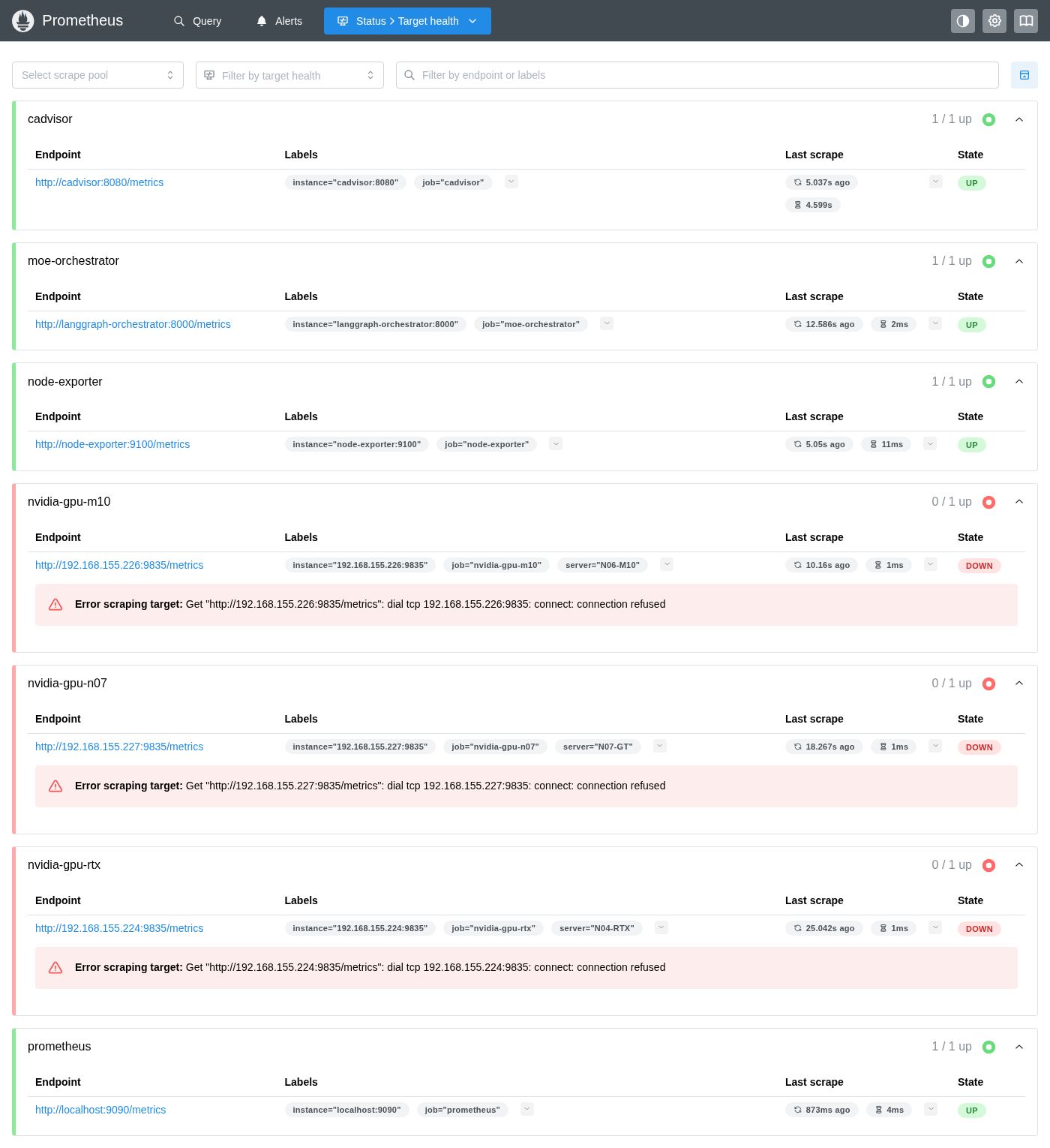

Prometheus — Scrape Targets

---

---

System Monitoring (/monitoring)

Provider Rate Limits

When Claude Code is active, this section shows the remaining API quota for each endpoint:

Column	Description
Endpoint	Server/provider name
Remaining	Remaining tokens until next reset
Limit	Total limit
%	Usage as progress bar
Reset	Next reset time

Color coding: Green (>20% remaining) · Yellow (<20%) · Red (exhausted)

System Gauges

Six real-time indicators for the state of the knowledge stack:

Gauge	Metric	Description
ChromaDB Documents	moe_chroma_documents_total	Number of vector documents in cache
Neo4j Entities	moe_graph_entities_total	Nodes in knowledge graph
Neo4j Relations	moe_graph_relations_total	Edges in knowledge graph
Ontology Entities	moe_ontology_entities_total	Ontology concepts
Planner Patterns	moe_planner_patterns_total	Learned routing patterns
Ontology Gaps	moe_ontology_gaps_total	Topics not covered

LLM Server Status

Compact overview of all configured inference servers:

• Online / Offline badge
• API type badge (Ollama / OpenAI)
• Latency (ms)
• GPU count
• Loaded models with VRAM usage (Ollama) or model count (OpenAI)
• Error message when offline

Hardware Metrics from Node Exporter

Each server status card also displays GPU, VRAM, RAM, and disk metrics when a node-exporter instance is reachable on port 9100 of the inference node's host. The Admin UI derives the host IP from the Ollama URL and queries the /metrics endpoint directly. GPU metrics (node_gpu_memory_used_bytes, node_gpu_memory_total_bytes, node_gpu_utilization_percent) are expected from a textfile collector (e.g., a cron job running nvidia-smi and writing to the collector directory).

Metrics Charts

All charts are queried via the Prometheus API (/api/monitoring) and rendered with Chart.js.

Chart	Metric	Type
Token usage by model	moe_tokens_total (by model)	Bar chart
Cache performance	moe_cache_hits_total / moe_cache_misses_total	Donut
Expert calls by category	moe_expert_calls_total (by category)	Bar chart
Expert calls by model	moe_expert_calls_total (by model)	Bar chart
Expert calls by model & node	Grouped	Bar chart
Requests by mode	moe_requests_total (by mode)	Donut
Confidence distribution	moe_expert_confidence_total	Donut
Latency & scores	P50/P95, self-evaluation, feedback	Table

Latency Metrics

Metric	Formula
P50 (Median)	histogram_quantile(0.50, rate(moe_response_duration_seconds_bucket[1h]))
P95 (95th percentile)	histogram_quantile(0.95, rate(moe_response_duration_seconds_bucket[1h]))
Self-evaluation avg	moe_self_eval_score_bucket (avg)
User feedback avg	moe_feedback_score_bucket (avg)

---

Live Monitoring (/live-monitoring)

Live Monitoring provides real-time insight into running processes with the ability to terminate individual requests.

Tab layout

flowchart TB
    P[/live-monitoring/]:::page
    P --> T1["Tab 1: Active Processes<br/>(badge = count)"]:::tab
    P --> T2["Tab 2: LLM Instances"]:::tab

    T1 --> R["Running API Requests<br/>(green/yellow/red by runtime)"]
    T1 --> K["Kill button<br/>per row"]
    T1 --> H["Process History<br/>up to HISTORY_MAX_ENTRIES"]

    T2 --> SC["Per-server cards"]
    SC --> LM["Loaded models<br/>(VRAM, quant, family, TTL)"]
    SC --> MC["Ollama Metrics<br/>(in-progress, queued, avg)"]
    SC --> AV["Available models<br/>(expandable list)"]

    classDef page fill:#eef2ff,stroke:#6366f1,font-weight:bold;
    classDef tab  fill:#f0fdf4,stroke:#16a34a;

All tab panes share the same 5-second polling loop but hit different REST endpoints:

Tab	Endpoint	Data source
Active Processes — running	GET /api/live/active-requests	Valkey SCAN moe:active:*
Active Processes — history	GET /api/live/history	Valkey ZRANGE moe:admin:completed
LLM Instances	GET /api/live/llm-instances	Direct HTTP fan-out to each configured inference server (/api/ps, /api/tags for Ollama; /v1/models for OpenAI-compatible)

Tab: Active Processes

Running API Requests

Table of all currently running requests (auto-refresh every 5 seconds):

Column	Description
Started	Request start time
Duration	Runtime in seconds
User	Username
Model	LLM in use
Mode	MoE mode (native, moe_reasoning, etc.)
Template	Expert template used (if set)
Type	streaming or standard
Client IP	Client IP address
Request ID	Unique chat ID
Kill	Button to terminate

Color coding by runtime:

Color	Runtime	Meaning
Green	≤ 30s	Normal
Yellow	≤ 120s	Longer than usual
Red	> 120s	Potential timeout

Killing a Process

sequenceDiagram
    actor Admin
    participant Browser as Admin UI<br/>(live_monitoring.html)
    participant Backend as admin_ui/app.py
    participant Valkey as Valkey<br/>moe:active:*
    participant Orch as Orchestrator<br/>main.py
    participant Client as API client

    Admin->>Browser: click "Kill"
    Browser->>Browser: confirmation dialog
    Browser->>Backend: POST /api/live/kill-request/{chatId}
    Backend->>Valkey: DEL moe:active:{chatId}
    Backend->>Valkey: ZADD moe:admin:completed status=killed
    Backend-->>Browser: 200 OK
    Orch->>Valkey: GET moe:active:{chatId}  (next checkpoint)
    Valkey-->>Orch: nil → abort
    Orch-->>Client: StreamingResponse closes
    Browser->>Backend: GET /api/live/active-requests  (next poll)
    Backend-->>Browser: row gone

What happens on kill:

1. The Valkey key moe:active:{chatId} is deleted
2. The request is moved to moe:admin:completed (Sorted Set) with status killed
3. The running LangGraph node receives the kill signal on the next checkpoint
4. The client receives an abort error

Streaming Requests

For streaming requests, it may take a few seconds for the kill command to take effect (at the next LangGraph checkpoint).

Process History

Table of all completed requests (up to HISTORY_MAX_ENTRIES, default: 5000):

Column	Description
Started	Start time
Ended	End time
Duration	Total runtime
User	Username
Model	LLM
Mode	MoE mode
Type	streaming / standard
Status	completed (green) or killed (red)

Use the "Clear History" button (top right in the history panel) to delete the entire history from Valkey.

The history limit can be configured via environment variable:

HISTORY_MAX_ENTRIES=5000   # Maximum number of entries before cleanup (default: 5000)

Tab: LLM Instances

Detailed status of all inference servers:

Per Server (Ollama)

Loaded Models:

Column	Description
Model	Model name:tag
VRAM	Currently used VRAM (MB)
Total	Total model size (MB)
Parameters	Parameter count
Quant.	Quantization level
Family	Model family
Expires	When the model will be unloaded from VRAM

Ollama Metrics (chips):

Metric	Meaning	Alert
In Progress	Current requests	Red if > 0
Queued	Queue length	Red if > 0
Loaded	Number of loaded models	–
Total Requests	Lifetime requests	–
Avg / Request	Average duration	–
↑ Input	Request size (MB)	–
↓ Output	Response size (MB)	–

Available Models (expandable):

All installed models with name, size (GB), parameter count, quantization.

Per Server (OpenAI-compatible)

• Model count
• Available models (list)

Refresh Controls

Element	Function
Last Updated	Timestamp of last query
Refresh manually	Immediate query
Auto 5s ☑	5-second polling (default: active)

---

Prometheus Metrics – Full List

Metric	Labels	Type	Description
moe_tokens_total	model, token_type, node, user_id	Counter	Processed tokens
moe_expert_calls_total	category, model, node	Counter	Expert invocations
moe_requests_total	mode	Counter	Requests by mode
moe_response_duration_seconds	–	Histogram	Response times
moe_cache_hits_total	–	Counter	Cache hits
moe_cache_misses_total	–	Counter	Cache misses
moe_expert_confidence_total	level	Counter	Confidence distribution
moe_self_eval_score_bucket	le	Histogram	Self-evaluation scores
moe_feedback_score_bucket	le	Histogram	User feedback scores
moe_chroma_documents_total	–	Gauge	ChromaDB documents
moe_graph_entities_total	–	Gauge	Neo4j entities
moe_graph_relations_total	–	Gauge	Neo4j relations
moe_ontology_entities_total	–	Gauge	Ontology entities
moe_planner_patterns_total	–	Gauge	Planner patterns
moe_ontology_gaps_total	–	Gauge	Ontology gaps

All metrics are also directly accessible via Prometheus (http://localhost:9090) and Grafana (http://localhost:3001).
